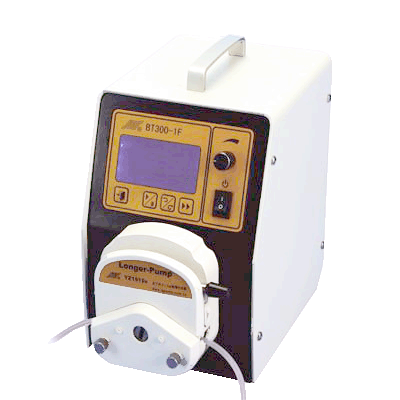

Peristaltic pump-style semi-automatic liquid filling machine

Name Model: peristaltic pump-style semi-automatic liquid filling machine-BT300-1F

The main purpose
锟斤拷 . Irrigation can be filling the vast majority types of liquids, including the high viscosity of the liquid. Such as: all kinds of pharmaceutical, chemicals, oils, cosmetics, food and other non-granular liquid; filling high accuracy, suitable for laboratory use.

Technical parameters
锟斤拷 . Speed range: 1 ~ 300 rpm, positive and irreversible
锟斤拷 . Speed: rotary encoders for conditioning
锟斤拷 . Show: 128 * 64-graphic dot-matrix liquid crystal display can be displayed in the flow and speed display switch between two ways
锟斤拷 . Allocation of frequency: 1 to 999
锟斤拷 . Distribution of liquid: 0.1 ml ~ 99.9L
锟斤拷 . Intervals: 1 to 999 seconds
锟斤拷 . Back to suction point: 0 ~ 360 锟斤拷 (18 锟斤拷 Step)
锟斤拷 . Communication Interface: RS485
锟斤拷 . External control interface: Commitment control, direction control, speed control 锟斤拷 (0 ~ 5V, 0 ~ 10V, 4 ~ 20mA, 0 ~ 10KHz optional)
锟斤拷 . Applicable power: AC 220V 锟斤拷 10%, 50Hz/60Hz (standard)锟斤拷 AC 110V 锟斤拷 10%, 50Hz/60Hz (optional)
锟斤拷 . Power consumption: <50 W
锟斤拷 . The working environment: Temperature 0 ~ 40 锟斤拷, relative humidity <80%
锟斤拷 . Protection levels: IP31
锟斤拷 . Speed resolution: 1 rpm
锟斤拷 . Drive Size: (L 锟斤拷 W 锟斤拷 H) 202 锟斤拷 160 锟斤拷 239 (mm)
锟斤拷 . Driver weight: 4.3 kg

Principles and characteristics of
锟斤拷 1锟斤拷install three Pump Head: YZ1515x, YZ2515x, YZ1515w
锟斤拷 2锟斤拷you can set up the distribution of time intervals, for automatic distribution of filling
锟斤拷 3锟斤拷 shows traffic or speed
锟斤拷 4锟斤拷 to set the flow correction, to obtain the most accurate flow
锟斤拷 5锟斤拷with communication interfaces, can provide users with communication agreement, users can also be customized PC software requirements
